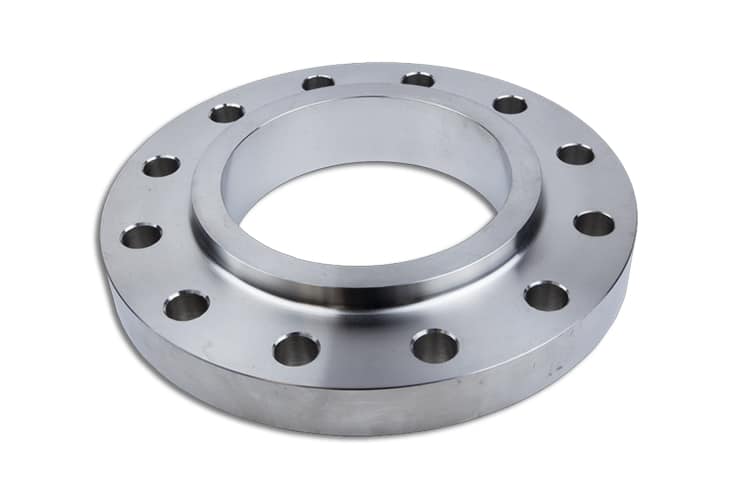

Mahesh Industries is a trusted manufacturer, supplier, and exporter of high-quality Raised Face (RF) Flanges, known for their strength, durability, and excellent sealing performance. Raised Face flanges are designed with a small raised area around the bore, which concentrates pressure on the gasket surface for a tighter, leak-proof seal. Ideal for high-pressure and high-temperature applications, our RF flanges are manufactured using premium materials such as stainless steel, carbon steel, and alloy steel. Compliant with international standards, Mahesh Industries' Raised Face Flanges are widely used in petrochemical, oil & gas, and industrial piping systems across the globe. ASME B16.5 Raised Face Flanges are commonly available in slip-on and weld neck types, offering reliable performance in various pressure applications. These flanges feature a small raised portion around the bore, which enhances gasket compression and provides a leak-proof seal. The height of the raised face depends on the flange's pressure-temperature rating, known as its class. For 150# and 300# Raised Face Flanges, the height is typically 1/16”, while for classes above 300#, it increases to 1/4”. A ring-type gasket fitting within the bore circle is used with these flanges, ensuring secure and efficient sealing under demanding conditions. Product Structure Standard Specication For Raised Face Flanges Dimensions :ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings Size : 1/2″ (15 NB) to 48″ (1200NB) Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 BS : BS4504 , BS4504, BS1560, BS10 Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) Material & Grades of Raised Face Flanges : Stainless Steel Raised Face Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L Duplex & Super Duplex Steel Raised Face Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 Carbon Steel Raised Face Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 Low Temperature Carbon Steel Raised Face Flanges : ASTM A350, LF2, LF3 Alloy Steel Raised Face Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 Copper Alloy Steel Raised Face Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 For Enquiry Send Email Or Contact Mahesh Industries Today!
