A usable flange enquiry must define more than size: you need the NPS, pressure class, flange type, facing, bore, material grade, inspection records and delivery terms. By the end, you will have a specification checklist for comparing quotations, verifying dimensional fit and choosing between ASME B16.5 and ASME B16.47.
Key takeaways
- State NPS and pressure class separately in every enquiry.
- Specify flange type, facing, material and service conditions.
- Request dimensional, material, inspection and traceability documents.
- Compare suppliers by manufacturing route, fit, delivery and records.
What ASME B16.5 Defines—and Which Size Standard You Need
ASME B16.5 controls flanges and flanged fittings from NPS 1/2 through NPS 24. It defines pressure classes 150, 300, 400, 600, 900, 1500 and 2500, plus flange dimensions, thickness, bolt-hole patterns, facing dimensions and pressure-temperature ratings. NPS and class are separate decisions: “24-inch, Class 1500” is not interchangeable with “24-inch, Class 150.”
| Standard | Size coverage | Use it for |
|---|---|---|
| ASME B16.5 | NPS 1/2 through NPS 24 | Standard-size flanges and flanged fittings |
| ASME B16.47 Series A or Series B | NPS above 24 | Large-diameter flanges, when the project specifies this standard |
For NPS above 24, investigate ASME B16.47 Series A or Series B instead of asking a manufacturer to extend B16.5 dimensions by quotation. The two B16.47 series have different dimensions and bolt patterns, so name the required series on the purchase specification.
If you plan to order asme b16 5 flanges in pune, include these details before requesting a price:
- NPS or DN, pressure class and B16.5 edition
- Flange type: weld-neck, slip-on, blind, threaded, socket-weld, lap-joint or reducing
- Facing: raised face (RF), ring-type joint (RTJ) or another specified facing
- Pipe outside diameter, wall thickness or schedule, bore and material grade
- Quantity, inspection scope, marking, documents, packing and delivery point
Confirm IBR status from the actual boiler, steam-piping or pressure-part service. Flange size or manufacturing location does not establish whether Indian Boiler Regulations documentation applies.
Build a Complete Flange Enquiry Before Requesting Prices
Send a complete purchase specification, not just “ASME B16.5 flange.” Your ASME B16.5 flange quotation is valid only when the manufacturer can identify the size, rating, configuration, material and commercial scope without guessing.
- State NPS separately from pressure class: for example, NPS 24, Class 1500. B16.5 covers NPS 1/2 through NPS 24 and Classes 150, 300, 400, 600, 900, 1500 and 2500.
- Name the type: weld-neck, slip-on, blind, threaded, socket-weld, lap-joint or reducing.
- Specify facing, such as raised face (RF) or ring-type joint (RTJ), plus bore diameter and pipe schedule or wall thickness.
- Identify the governing material specification and grade, such as an ASTM or ASME forging specification, and state whether the item is IBR or non-IBR.
- State quantity, applicable B16.5 edition, inspection and testing requirements, marking, certificates and other release documents.
- Define packing, delivery point in Pune, taxes and freight terms.
- For NPS above 24, request ASME B16.47 Series A, Series B or the project-specified standard instead of asking for extended B16.5 dimensions.
| Detail omitted | What can go wrong | Detail to provide |
|---|---|---|
| Size or class | Wrong bolt circle, thickness or pressure rating | NPS and Class |
| Type or facing | Incorrect bore, hub or gasket fit | Flange type and RF or RTJ |
| Material or documents | Unusable certification or service incompatibility | Grade, inspection scope and certificates |
A drawing or datasheet should confirm outside diameter, bore, thickness, bolt-circle diameter, hole count, hole diameter and facing dimensions.
Select the Flange Type, Facing and Material for the Service
A weld-neck flange is the usual choice for demanding, cyclic or high-pressure lines because its tapered hub transfers stress into the pipe. Select the configuration from the joint, maintenance and loading requirements—not from price alone.

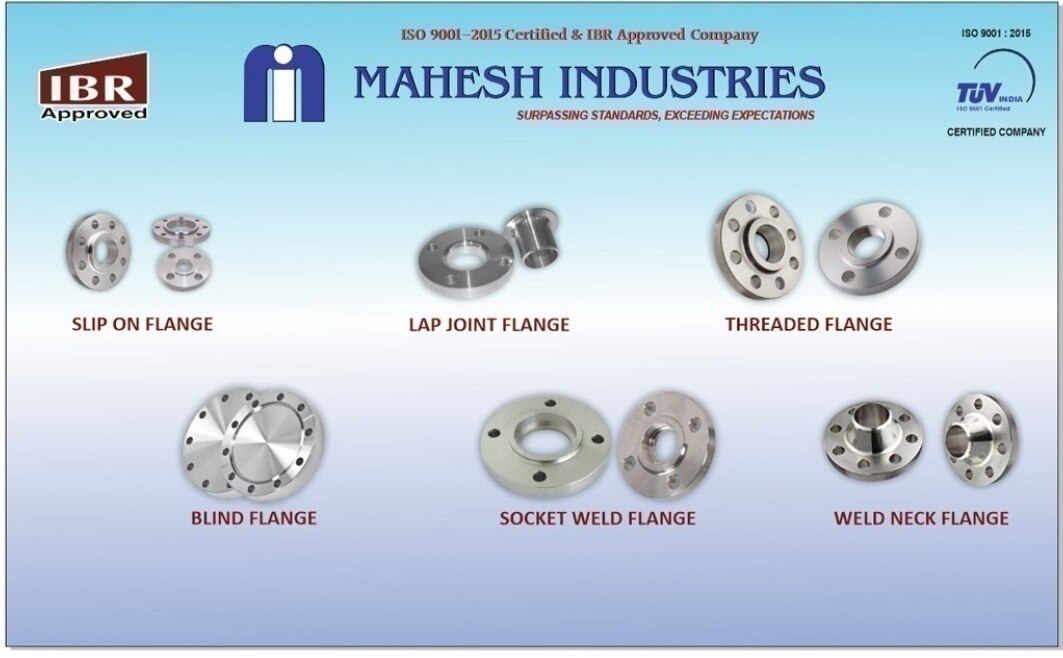

| Flange type | Choose it when | Check before ordering |
|---|---|---|
| Weld neck | The line sees high stress, cycling or severe service | Pipe outside diameter, wall thickness and bore |
| Slip-on | Installation speed and moderate service matter | Weld detail and reduced fatigue resistance |
| Blind | You need to terminate or isolate a line | Pressure thrust and future access |
| Socket weld | Small-bore piping needs a compact welded joint | Socket depth and pipe insertion gap |
| Threaded | Welding is prohibited or impractical | Thread standard, sealing method and service limits |
| Lap joint | Frequent dismantling or lining changes are required | Stub-end compatibility and bolt alignment |
Match the gasket to the facing. Use a full-face gasket with a flat face (FF), a narrow gasket covering the raised portion with a raised face (RF), and a metal ring gasket in the matching RTJ groove. Do not pair an RTJ flange with an RF gasket.
Confirm bolt-hole orientation, nozzle clearance, gasket dimensions and mating flange type on the drawing.
Specify the governing material specification and grade, such as ASME SA-105, SA-182 F304/F316 or SA-350 LF2, rather than “carbon steel.” Check corrosion, design temperature, toughness and pressure-temperature rating; confirm IBR documentation when the line falls under Indian Boiler Regulations. Ask the quotation to state flange type, facing, bore, grade and applicable B16.5 edition.
Check Pipe Fit, Pressure-Temperature Rating and Inspection Scope
A nominal pipe size does not prove that a flange will fit. Send the connected pipe outside diameter, wall thickness or schedule, and material grade; NPS alone cannot establish the correct bore when the pipe has a non-standard wall.
Before approving the quotation or drawing, verify:
- Flange type: weld-neck, slip-on, blind, threaded, socket-weld, lap-joint or reducing. Each changes the bore, hub geometry and joining method.
- Bore diameter against the actual pipe outside diameter and wall thickness.
- Facing dimensions and type, such as raised face (RF) or ring-type joint (RTJ).
- Flange thickness, bolt-circle diameter, number of bolt holes and bolt-hole diameter against the mating flange.
- NPS and pressure class as separate entries, for example NPS 24, Class 1500.
- Material specification and grade, such as the applicable ASTM or ASME forging specification, not merely “carbon steel” or “stainless steel.”
- ASME B16.5 edition, marking, material certificate and agreed inspection records.
Class 150, 300 or 600 is not a direct bar rating. Check the ASME B16.5 pressure-temperature table for the proposed material group at your design temperature, then confirm its allowable pressure exceeds the design pressure. A flange rated at the required class at ambient temperature can lose capacity as temperature rises.
Define inspection scope before placing the order. State whether you require dimensional inspection, material test certificates, positive material identification, hardness testing or ultrasonic examination, and name the acceptance criteria. Vague inspection wording leaves missing tests undiscovered until dispatch.
Compare Pune Suppliers by Manufacturing Route, Documents and Delivery
Do not award the order to the lowest per-kilogram quote. Compare what that price includes: steel grade, forging or plate route, heat treatment, machining, inspection, certificates, packing and freight to your Pune delivery point.
Ask each ASME B16.5 flange supplier in Pune to describe the ASME B16.5 flange manufacturing process and identify where traceability is checked.
| Supplier evidence | What to compare | Warning sign |
|---|---|---|
| Manufacturing route | Heat-number verification, forging or plate preparation, heat treatment, rough machining, final facing, marking and inspection | “Machined from blank” with no material or heat-treatment records |
| Documents | Material certificate, heat number, chemical and mechanical results, dimensional report, marking record and inspection release | Certificate offered only after dispatch |
| Delivery plan | Material procurement, forming, heat treatment, machining, inspection, document approval and dispatch shown as separate dates | One broad delivery promise based only on machining time |
For IBR service, write the required IBR material certificate or form, heat traceability, approval details, inspection-authority involvement and test reports into the purchase order. “IBR approved” alone does not identify which component or documents are covered. Mahesh Industries should be assessed against the same evidence rather than a general capability statement.
Before comparing totals, require these quotation fields:
- NPS, class, flange type, facing, bore or schedule, material grade and quantity
- Applicable B16.5 edition, inspection scope, marking, packing, taxes, freight and delivery point
- Separate charges for RTJ machining, third-party inspection, low-temperature material or document review
A cheaper quote that omits these items is not cheaper; it transfers cost and schedule risk to you.
Related product
 | Asme B16.5 Flanges Mahesh Industries is a trusted manufacturer, supplier, and exporter of ASME B16.5 flanges, designed to meet global standards for pressure and... View product → |
Frequently asked questions
What does ASME B16.5 cover?
ASME B16.5 covers flanges and flanged fittings from NPS 1/2 through NPS 24, including pressure classes, dimensions, bolt-hole patterns, facings and pressure-temperature ratings.
Why must you specify NPS and pressure class separately?
NPS identifies the nominal size, while the pressure class identifies the rating. A 24-inch Class 1500 flange is not interchangeable with a 24-inch Class 150 flange.
What information belongs in an ASME B16.5 flange quotation request?
Include NPS, pressure class, flange type, facing, material, service conditions, quantity, inspection scope and required documents before requesting prices.
How should you compare an ASME B16.5 flange supplier in Pune?
Compare the manufacturing route, pipe fit, pressure-temperature rating, inspection scope, traceability documents and delivery commitment.
